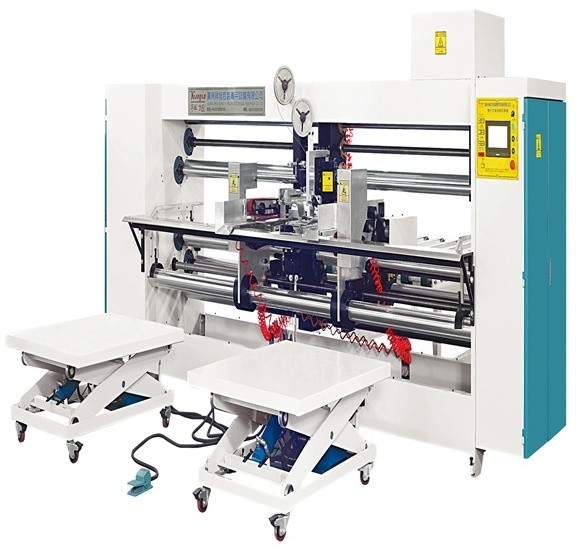

DOUBLE PIECES SEMI-AUTO STITCHER

WHOLE MACHINE FEATURES:

I. Core Performance Parameters

Servo-driven high-speed semi-automatic stitching system with a peak capacity of 500 nails/minute, equipped with quick-change mechanisms for seamless multi-format conversion.

Ergonomic HMI design enables operators with zero experience to achieve proficiency within 30 minutes.

Dual-mode stitching system: Supports intelligent switching between single/double-layer cardboard.

II. Intelligent Control System

Integrated production counter  automatic bundling unit.

Computerized parameter control system:

• Dynamic stitching speed adjustment (200–500 nails/minute)

•

• Real-time production data and fault diagnostics via 7-inch industrial touchscreen.

•

III. Precision Positioning System

Infrared photoelectric sensing platform.

• Auto-lifting positioning accuracy.

•

• Adaptive feeding height compensation

•

• Manual fine-tuning baffle

•

IV. Structural Safety Design

Precision bearing components from FAG (Germany) and NSK (Japan).

Dual safety protection mechanisms.

• Overload auto-shutdown protection

•

V. Product Compatibility

Staple compatibility: Standard single staples, reinforced double staples, and special-shaped staples.


• Standard adaptation: 3-/5-layer corrugated cartons

•

• Custom solutions: 7-layer heavy-duty cartons (including lidless configurations).

MAIN SPARE PARTS:

Japanese YASKAWA ELECTRIC servo motor .

Japanese OMRON PLC programmed.

Japanese YASKAWA ELECTRIC servo motor Control.

Japanese NSK Bearing. TR bearing with set.

Electric switch & contactor: Taiwan brand. Almost Electric: Germany SIEMENS and France Schneider.

Stitching head use Japanese molding design. CNC precision treated.

Blade and bottom mould used Germany Tungsten steel. And Japanese SKD11 alloy steel puncher pin that anti-friction and rot.

All transmission gears are hardened and ground, HRC 58-60°.

Germany Air-tec pneumatic cylinder adopted.

America BANNER/ Taiwan Fotek / Taiwan Wunlun Color Touch Screen.

Company Introduction:

Wepack Machinery Equipment Co., Ltd. is one of the professional manufacturers and exporters of high-end printing and packaging machinery and equipment for corrugated cartons, integrating design, research and development, production, sales and service, and a system integration service provider for the corrugated paper intelligent equipment industry.
Since our establishment, the company has been adhering to the feedback from customers and the market, and has been committed to the research and development and innovation of equipment. With advanced machinery and equipment, exquisite technology, and systematic scientific management, it has obtained many patents in China. Thanks to the excellent reputation of our products and timely and efficient services, we have won the recognition of many customers in Southeast Asia, South America, Australia, the Middle East, Western Europe, etc., and have exported more than 30 countries and regions around the world.

The products range from high-end intelligent Fully Auto Folder Gluer Stitcher Machine,Vacuum Transfer type Fully Automatic Flexo Printer Slotter Die-cutter Auto Stacker; Fully Automatic Flexo Printer Slotter Die-cutter Inline Folder Gluer & Counter Ejector to Fully Automatic Packaging Machine and other equipments, covering the integrated equipment of the corrugated paper intelligent equipment industry and packaging machinery spare parts. All models adopt full servo digital control system, and some models open windows operating system and ERP system interface as needed. The machine is highly automated and intelligent, easy to operate. Low energy consumption and high production efficiency,effectively help users reducing costs, improve quality and efficiency,achieve lean production. We have our own independent factory with a production workshop of more than 10,000 square meters.

Factory Introduction:

Our production line is a carton back-end process production line which integrate the advanced technology and excellent professionals,The engineers have deep professional knowledge an optimized technical background who are responsible for the all production lines design, commissioning and maintenance. They can optimize the production line according to customer requirement and the actual situation to improve production efficiency and quality.The production line is also equipped with other professionals, such as quality control personnel and equipment maintenance personnel, etc. They are responsible for different responsibilities and jointly ensure the normal operation of the production line and the quality of the cartons.

Packing and Shipping:

Product Packaging:

• The corrugated printer slotter will be packed in a sturdy cardboard box.
• The box will be secured with adhesive tape to prevent any damage during transit.
• The product will be wrapped in protective bubble wrap or foam to provide extra cushioning.

Shipping:

• The product will be shipped via a reputable courier service.
• The shipping cost will be calculated based on the destination and weight of the package.
• Customers will receive a tracking number to monitor the delivery status of their package.
• Delivery times may vary depending on the location of the customer.
