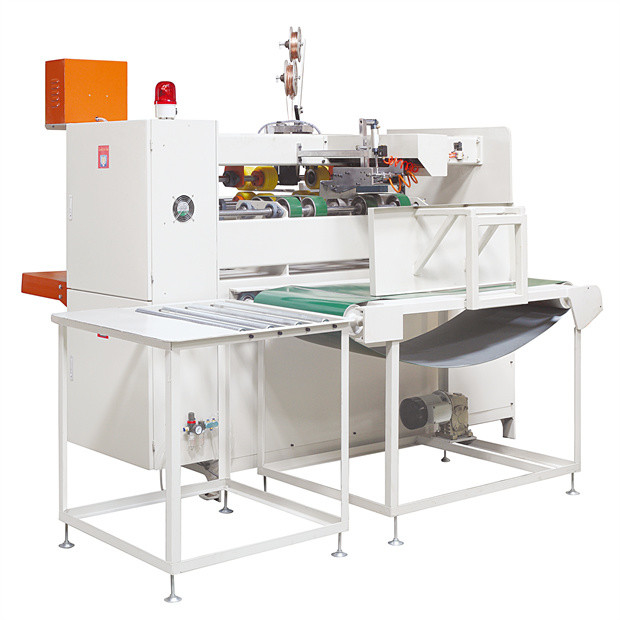

Semi Automatic Stitcher Machine For Offset Printed Carton

Product Details

Place of Origin: GUANGDONG, CHINA

Brand Name: WEPACK

Certification: CE,SGS

Model Number: WM-X2-1800

Payment & Shipping Terms

Minimum Order Quantity: 1 SET

Price: Negociated

Packaging Details: Wrapping film protective packaging in line with export cabinets

Delivery Time: 5-15 days

Payment Terms: L/C, T/T

Supply Ability: 30 sets per month

Get Best Price
Highlight:
Number Of Heads:
Two
Automation:
Semi-automatic
Stitching Speed:
500nails Per Minute
Type:
Stitcher
Dimensions:
4000mm X 3300mm
Suitable For:
Offset Printed Carton
Stitching Pitch:
30-120mm
Number Of Heads:
Two
Automation:
Semi-automatic
Stitching Speed:
500nails Per Minute
Type:
Stitcher
Dimensions:
4000mm X 3300mm
Suitable For:
Offset Printed Carton
Stitching Pitch:
30-120mm
Semi Automatic Stitcher Machine For Offset Printed Carton
Semi Automatic Stitcher Machine For Offset Printed Carton


WHOLE MACHINE FEATURES:

1.Servo system Speeding semi-automatic stitching machine can stitch 500 nails/minute, easily changing work size if needed.

2.Even inexperienced personnel can get started quickly.

3.Allowing single and double sheet to stitch flexibility.

4.The smart counter automatically counts the final product.

5.Infrared optical device adjust lifting platform automatically to control the feed height precisely.

6.Safe and stable, low failure rate Suitable for single-sheet box and double-sheet box.

7.Thanks to the electric control, the size can be changed quickly, the baffle can be adjusted manually.

8.Suitable for single nail/double nail and strengthen nail.

8.The paper feeding section automatic counting and bunding.

9.The nail distance and nail speed adjusted by computer automatically.

10.Adopting computer screen display and fault prompts.

11.Suitable for three or five seven layers of carton (seven-layer box, no-cover box need customization).

12.Most of bearing in the important department of the machine is made in Germany FAG ,Japan NSK etc as shown below with Main spare parts.

Semi Automatic Stitcher Machine For Offset Printed Carton 0

MAIN SPARE PARTS:

1.Japanese YASKAWA ELECTRIC servo motor .

2.Japanese OMRON PLC programmed.

3.Japanese YASKAWA ELECTRIC servo motor Control.

4.Japanese NSK Bearing. TR bearing with set.

5.Electric switch & contactor: Taiwan brand. Almost Electric: Germany SIEMENS and France Schneider.

6.Stitching head use Japanese molding design. CNC precision treated.

7.Blade and bottom mould used Germany Tungsten steel. And Japanese SKD11 alloy steel puncher pin that anti-friction and rot.

8.All transmission gears are hardened and ground, HRC 58-60°.

9.Germany Air-tec pneumatic cylinder adopted.

10.America BANNER/ Taiwan Fotek / Taiwan Wunlun Color Touch Screen.

MODEL
WM-XX2-1800
Machine speed
500 Nail/min
Stitching distance(D)
30-120 mm
No. of Stitching
1-99钉
Paperboard thickness
3-10mm
Stitching wire
17#(2.0x1.0mm);18#(1.8x0.8mm)
Max (A+B)X2
3600mm
Min (A+B)X2
1060mm
Max Length(A)
1450mm
Min. Length(A)
350mm
Max Width(B)
800mm
Min Width(B)
180mm
Side mark(C)
125-500mm
Stitching flap
30-45mm
The first stitching
20-380mm
Voltage (Three variable)frequency)
380v 415V
Total power
12HP 5kw
Machine size
4000X3300mm
Machine weight
3000KG
feeding height
900mm
Nails Type
Single/ / / Double// // MIX/ // /





Equipment Characteristics:



  • Easy to operate without experience,safe and stable,low failure rate.
  • Suitable for single-sheet box and double-sheet box.
  • Size electric control,baffle manual adjustment,quick side change.
  • Suitable for single nail/double nail and strengthen nail.
  • The paper feeding section automatic counting and bunding.
  • The nail distance and nail speed adjusted by computer automatically.
  • Adoping computer screen display and fault prompts.
  • Suitable for three or five seven layers of carton(seven-layer box,no-cover box need customization)
