Two Head Semi Auto Gluer Machine 120mm Pitch For Offset Printed Carton

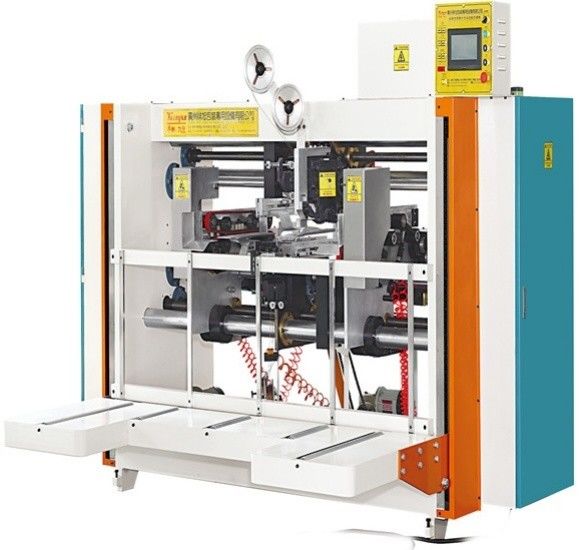

Semi-Auto Two Head Stitcher For Offset Printed Carton

WHOLE MACHINE FEATURES

1.Servo system Speeding semi-auto stitching machine can stitch 500 nails/minute, easily changing work size if needed.

2.Even inexperienced personnel can get started quickly.

3.Allowing single and double sheet to stitch flexibility.

4.The smart counter automatically counts the final product.

5.Infrared optical device adjust lifting platform automatically to control the feed height precisely .

6.Safe and stable, low failure rate Suitable for single-sheet box and double-sheet box

7.Thanks to the electric control, the size can be changed quickly, the baffle can be adjusted manually.

8.Suitable for single nail/double nail and strengthen nail

8.The paper feeding section automatic counting and bunding

9.The nail distance and nail speed adjusted by computer automatically. 10.Adopting computer screen display and fault prompts

11.Suitable for three or five seven layers of carton (seven-layer box, no-cover box need customization)

12.Most of bearing in the important department of the machine is made in Germany FAG ,Japan NSK etc as shown below with Main spare parts.




MAIN SPARE PARTS:

1,Japanese YASKAWA ELECTRIC servo motor .

2,Japanese OMRON PLC programmed.
3,Japanese YASKAWA ELECTRIC servo motor Control.

4,Japanese NSK Bearing. TR bearing with set.
5,Electric switch & contactor: Taiwan brand. Almost Electric: Germany SIEMENS and France Schneider.

6,Stitching head use Japanese molding design. CNC precision treated.

7,Blade and bottom mould used Germany Tungsten steel. And Japanese SKD11 alloy steel puncher pin that anti-friction and rot.

8,All transmission gears are hardened and ground, HRC 58-60°.

9,Germany Air-tec pneumatic cylinder adopted.

10,America BANNER/ Taiwan Fotek / Taiwan Wunlun Color Touch Screen.

MODEL

WM-XX2-1800

Machine speed

500 Nail/min

Stitching distance(D)

30-140 mm

No. of Stitching

1-99钉

Paperboard thickness

3-10mm

Stitching wire

17#(2.0x1.0mm);18#(1.8x0.8mm)

Max (A+B)X2

3600mm

Min (A+B)X2

1060mm

Max Length(A)

1450mm

Min. Length(A)

300mm

Max Width(B)

800mm

Min Width(B)

125mm

Side mark(C)

125-500mm

Stitching flap

30-45mm

The first stitching

20-380mm

Voltage (Three variable)frequency)

380v 415V

Total power

12HP 5kw

Machine size

4000X3300mm

Machine weight

2800KG

feeding height

900mm

Nails Type

Single/ / / Double// // MIX/ // /
