Double Servo Automatic Manual Stitcher Machine With 1550*620*1950Mm Size

Product Details

Place of Origin: GUANGDONG, CHINA

Brand Name: WEPACK

Certification: CE,SGS

Model Number: X7-1200

Payment & Shipping Terms

Minimum Order Quantity: 1 SET

Price: Negociated

Packaging Details: Wooden frame,wrapping film,bandage,carton, protective packaging in line with export cabinets

Delivery Time: 1-15 days

Payment Terms: L/C, T/T

Supply Ability: 50 sets per month

Get Best Price
Highlight:

Manual Stitcher Machine

,

Auto Push Box Stitcher Machine

,

Double Servo Stitcher Machine

Application:
Corrugated Cardboard
Material:
Stainless Steel
Max. Speed:
400 Stitches/min
Weight:
500kg
Power:
2KW
Stitching Height:
10-150mm
Dimension:
1550x620x1950mm
Stitching Type:
Single Or Double Stitching
Application:
Corrugated Cardboard
Material:
Stainless Steel
Max. Speed:
400 Stitches/min
Weight:
500kg
Power:
2KW
Stitching Height:
10-150mm
Dimension:
1550x620x1950mm
Stitching Type:
Single Or Double Stitching
Double Servo Automatic Manual Stitcher Machine With 1550*620*1950Mm Size

Double Servo Automatic Manual Stitcher Machine With 1550*620*1950 mm Size

Machine Features

  • Bridge adopts high quality profile and plate and the skeleton is made of H steel.

  • The carton sitching machine is used to make corrugated box with the stitching wire.

  • Feed the cardboard manually, feet switch control the working

  • The machine adopts advanced electronic clutch and electronic brake devices to replace the traditional mechanical clutch so as to realize controllable operation.

  • It has the characters of high efficiency, low energyconsumption, new structure,electronic assembly, low failure rate, a larger range of winding .Easy adjust and operate.

  • Adopts double servo drive system, accurate, precision mechanical transmission parts, can effectively reduce the mechanical failure, nailing speed, update technology, better quality.

  • Electric PANASONIC PLC control system, Japan OMRON, switch power supply SAMKOON touch-screen, Taiwan FOTEK proximity switch.

  • AIR-TEC Cylinder, solenoid valve, Taiwan foot switch.

  • Nail head all adopt imported from Japan for the whole mold production, computer gong precision machining.

  • The blade, the punch From Taiwan TAOYUAN precision machining, the blade can be replaced.(wear resistance, corrosion resistance).

  • Japan NSK bearings

PARAMETER:XU-X7-1200

Model
WM-X7-1200
Stapling speed
200-400 nails/min
Stitching wire
18# (1.8*0.8mm)
Max Cardboard thickness
16mm(before press)
Wire Size
2.2*0.7mm
Length of strength arm
1200mm
Max Sheet size(A+B)
1000mm
Motor power
2kw
shape size
1550*620*1950MM
Machine weight
500KG

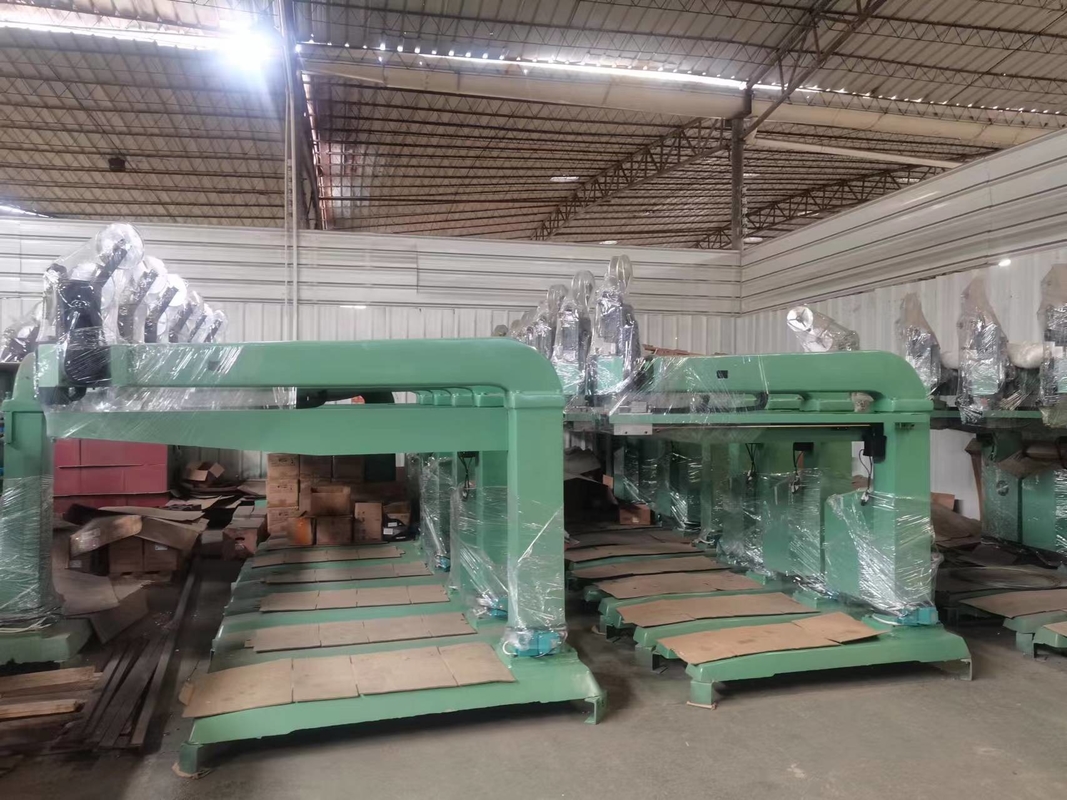

Double Servo Automatic Manual Stitcher Machine With 1550*620*1950Mm Size 0

Company Introductiion:

Wepack Machinery Equipment Co., Ltd. is one of the professional manufacturers and exporters of high-end printing and packaging machinery and equipment for corrugated cartons, integrating design, research and development, production, sales and service, and a system integration service provider for the corrugated paper intelligent equipment industry.
Since our establishment, the company has been adhering to the feedback from customers and the market, and has been committed to the research and development and innovation of equipment. With advanced machinery and equipment, exquisite technology, and systematic scientific management, it has obtained many patents in China. Thanks to the excellent reputation of our products and timely and efficient services, we have won the recognition of many customers in Southeast Asia, South America, Australia, the Middle East, Western Europe, etc., and have exported more than 30 countries and regions around the world.

Packing and Shipping:

Product Packaging:

  • The corrugated printer slotter will be packed in a sturdy cardboard box.
  • The box will be secured with adhesive tape to prevent any damage during transit.
  • The product will be wrapped in protective bubble wrap or foam to provide extra cushioning.

Shipping:

  • The product will be shipped via a reputable courier service.
  • The shipping cost will be calculated based on the destination and weight of the package.
  • Customers will receive a tracking number to monitor the delivery status of their package.
  • Delivery times may vary depending on the location of the customer.
