Product Details
Place of Origin: GUANGDONG, CHINA
Brand Name: WEPACK
Certification: CE,SGS,Patent Certificate
Model Number: WM-5
Payment & Shipping Terms
Minimum Order Quantity: 1 SET
Packaging Details: Wrapping film protective packaging in line with export cabinets
Delivery Time: 5-35 working days
Payment Terms: L/C, T/T
Supply Ability: 1sets per month
Category: |
Automatic Folder Gluer Stitcher |
Weight: |
21000 KG |
Max Speed: |
1200nails/min |
Model: |
2800 |
Stitching Wire Type: |
Round Or Flat Wire |
Usage: |
Box Stitching And Gluing |
Category: |
Automatic Folder Gluer Stitcher |
Weight: |
21000 KG |
Max Speed: |
1200nails/min |
Model: |
2800 |
Stitching Wire Type: |
Round Or Flat Wire |
Usage: |
Box Stitching And Gluing |

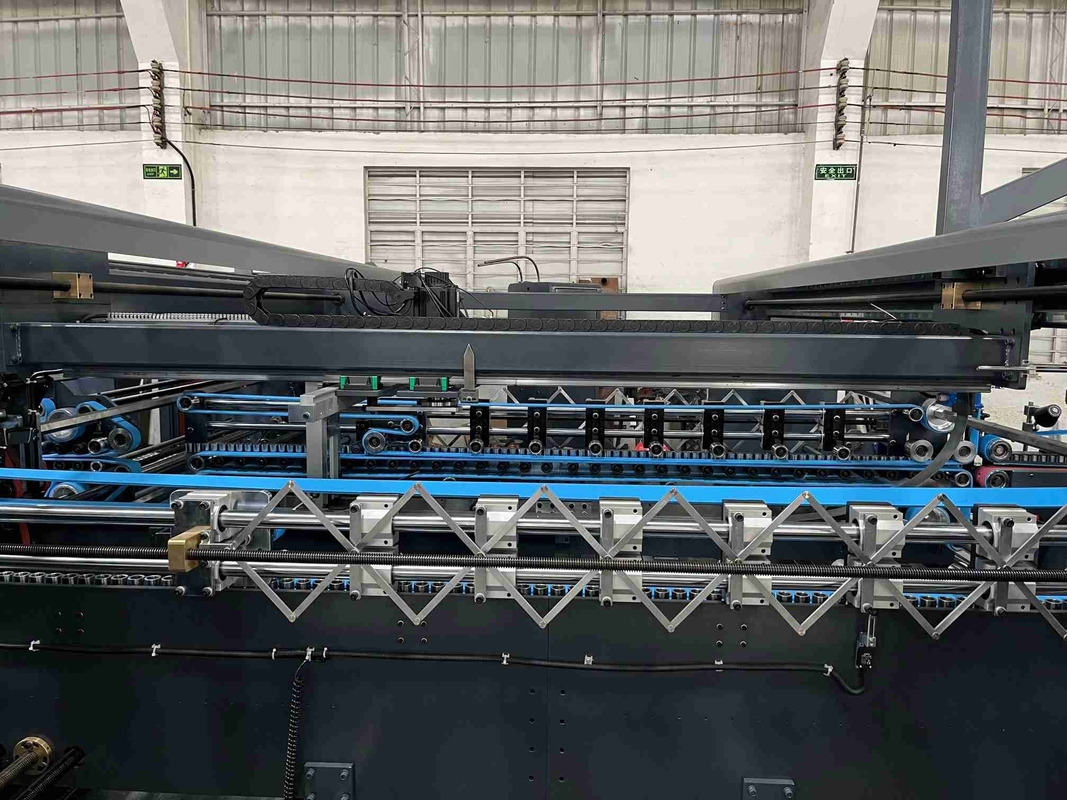

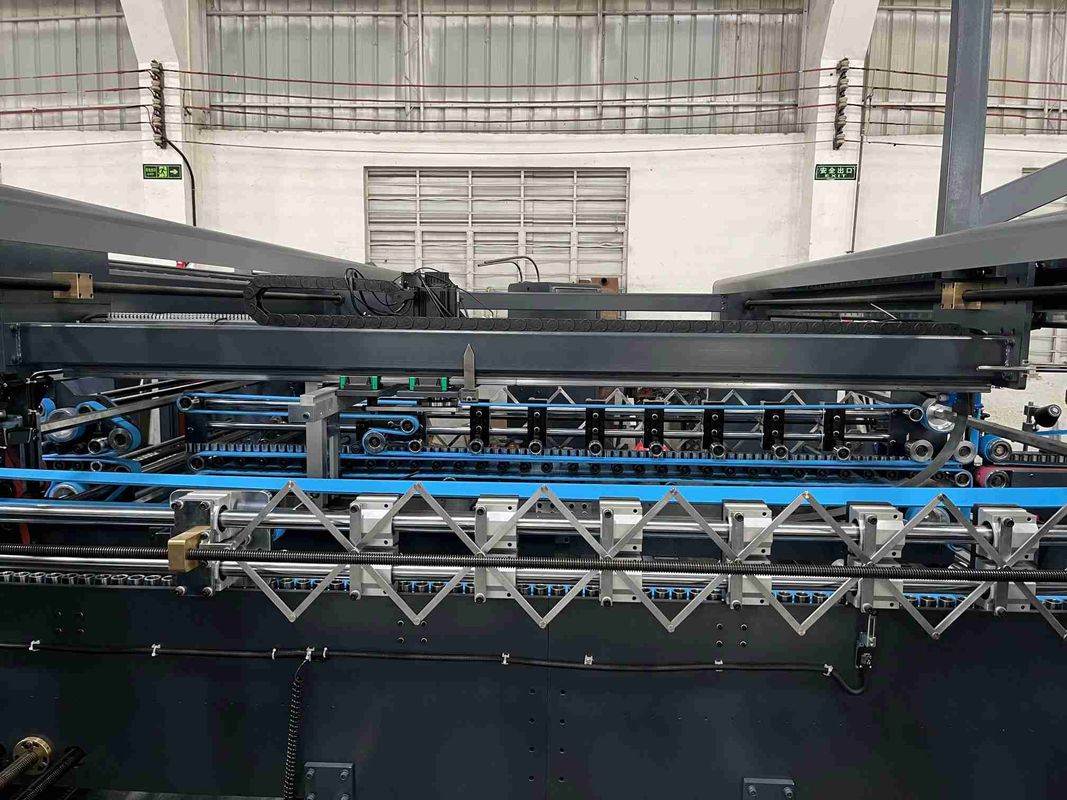

10 sets of Japan Nitta fully suction belt control system, Pneumatic Baffle Patting Device (Side Baffle). The patting frequency can be set via the touch screen with computer interface.
All units can be separated with one-button operation, featuring auto return-to-"zero" design.
Transmission shaft equipped with friction-type clutch to prevent machine damage from improper operation.
Main motor incorporates start delay protection function - the motor will not activate unless all units are properly locked.
U-shaped steel table side strips between machine units enhance operator safety during misoperations.
Motorized forward/backward movement on rear top board stacker reduces setup time.
Front board distance adjustment with manual synchronous mechanism enables convenient rapid configuration.
Supports both continuous feeding and skip feeding modes.
Board feeding counter for preset and real-time production quantity display.
Cam bearing transmission system minimizes wear to ensure smooth power transfer.
Adaptive Gluing System
One or more adhesive applicators are installed before the folding section, adjustable based on carton dimensions. Each applicator comprises a coated rubber roller, an upper pressure roller, and a glue reservoir. Modules A and B feature independent geared motor drives for simplified and rapid adjustments.
Multi-Stage Folding Mechanism
The board undergoes 180° folding on the left/right secondary and fourth lines via three 60mm-wide base belts combined with dual 60mm-wide folding guides.
Adjustable Guide System
Multiple angled guide rollers are incorporated, allowing positional and angular adjustments to accommodate varying paper grades and board thicknesses, ensuring seamless folding operations.
Drive & Conveyance Components
Independent servo-driven geared motors for user-friendly control
Bottom belt reinforced with support bearings to maintain stable belt motion
Customizable Speed Configuration
The independent transmission system enables speed optimization during carton forming based on box type requirements.
Calibration & Alignment Unit
Folded cartons transition from the folding section to the calibration zone, where upper/lower belt speeds are adjustable to minimize carton height deviations.
Comprises A/B dual guide plates, each equipped with alignment rollers for carton dimension calibration during sealing
A precision servo-driven calibration system refines carton alignment post-roller adjustment, achieving optimal finishing results
PUSHING & SANPING UNIT (Rectifying section)
