Home > products > Corrugated Printer Slotter > Automatic Printer Slotter Die Cutter Machine 3 Phase For 1.5mm Cardboard

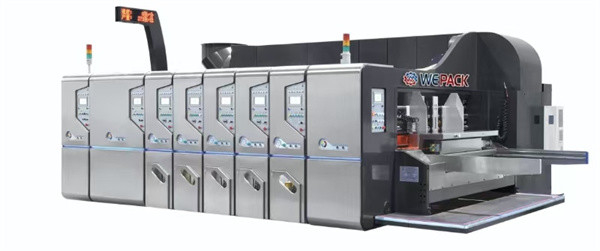

Automatic Printer Slotter Die Cutter Machine 3 Phase For 1.5mm Cardboard

Product Details

Place of Origin: GUANGDONG,CHINA

Brand Name: Wepack

Certification: CE, PATENT CERTIFICATE

Model Number: WM-T2-0920

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negociated

Packaging Details: Anti-rust, Film Wrap protective packaging in line with export cabinets

Delivery Time: 30-65days

Payment Terms: TT, L/C

Supply Ability: 10sets/month

Get Best Price
Highlight:

Automatic Printer Slotter Die Cutter Machine

,

1.5mm Printer Slotter Die Cutter Machine

,

3 Phase Flexo Printer Slotter Machine

Max. Die-Cutting Size:
890x1950mm
Skip Feed Size:
1200x2100mm
Printing Speed:
350 Sheets/min
Printing Color:
1-4 Colors
Sheet Thickness:
1.5-11mm
Min. Sheet Size:
2800x690mm
Power Supply:
380V/50Hz/3Ph
Max. Slotting Depth:
305mm
Max. Die-Cutting Size:
890x1950mm
Skip Feed Size:
1200x2100mm
Printing Speed:
350 Sheets/min
Printing Color:
1-4 Colors
Sheet Thickness:
1.5-11mm
Min. Sheet Size:
2800x690mm
Power Supply:
380V/50Hz/3Ph
Max. Slotting Depth:
305mm
Automatic Printer Slotter Die Cutter Machine 3 Phase For 1.5mm Cardboard

Speed 4-Color Printing Corrugated Board Printer Slotter For 1.5mm-11mm Paper

Product Description:

MAIN FUNCTIONS

  • Folder Gluer Inline Control, the main function can be adjusted by data input or order management system.
  • Max. Speed: 350sheets/min.
  • Top Loading Counter Ejector.
  • Multi-groups of Germany Bosch Rexroth servo motors coordinate action Single stacks quantities can be from 10-30 cartons, and max can reach to 35 stacks per minute.
  • Standard equipped with both Valco Gluing system and Gluing Wheel System.
  • Japanese Nitta main conveyor belts.
  • Can easy match with Pre-feeder or Automatic Strapping Machine, the whole line can be operated by 2-4 labors.
  • High speed inline top flexo print case maker with down folding provides a complete carton boxes producing solutions.
  • The machine is designed and made to high quality and safety standard, stable and consistency high printing quality maximize the production efficiency.
  • Main Motor With Start Delay Protection Function. If Not All the Units Locked Well, the Main Motor Will Not Work.


Technical Parameters:

Product Attribute Value
Product Name Fluteboard Printing and Slotting Unit
Printing Speed 350 Sheets/min
Power Supply 380V/50Hz/3Ph
Max. Die-Cutting Size 890x1950mm
Sheet Thickness 1.5-11mm
Skip Feed Size 1200x2100mm
Min. Sheet Size 2800x690mm
Max. Printing Area 900x2100mm
Max. Slotting Depth 305mm
Printing Color 1-4 Colors
Product Type Automatic Flexo Printer Slotter Folder Glue
Product Model Flexo Printer Slotter Die Cutter


Applications:

The Wepack WM-T2-0920 can be used for printing, slotting, and die-cutting cardboard sheets. It is a perfect fit for businesses that deal with packaging, such as those in the food and beverage industry. The machine can print up to 4 colors and has a maximum printing area of 900x2100mm. Additionally, it has a maximum die-cutting size of 890x1950mm and a maximum slotting depth of 305mm.

This Cardboard Sheet Printer Slotter Stacker is also ideal for businesses that specialize in producing rigid boxes. The machine can handle a variety of materials, including corrugated cardboard and paperboard. It is capable of printing high-quality graphics on the material, which is important for branding and marketing purposes. Furthermore, the machine can produce boxes with intricate designs because of its slotting and die-cutting capabilities.

One of the key features of the Wepack WM-T2-0920 is its power supply of 380V/50Hz/3Ph. This makes it suitable for use in many different countries and regions around the world. The machine also comes with anti-rust, film wrap protective packaging that is in line with export cabinets. This ensures that the machine arrives at its destination in good condition.

The delivery time for the Wepack WM-T2-0920 is between 30-65 days, depending on the location of the buyer. Payment terms for this product include TT and L/C. The supply ability of the machine is 10 sets per month, which means that it is readily available for businesses that need it. Overall, the Wepack WM-T2-0920 Flexo Printer Slotter Die Cutter is an excellent investment for businesses that need a reliable and high-quality machine for their printing and packaging needs.
