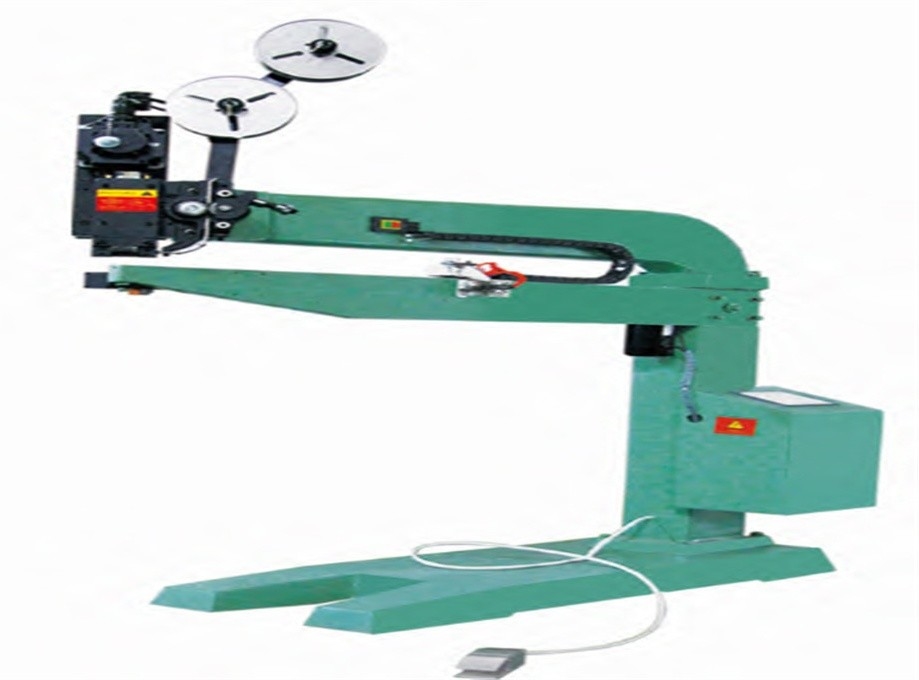

Stainless Steel Carton Box Stitching Machine Two Servo 150mm Stitching Height

Name: Stainless Steel Carton Box Stitching Machine Two Servo 150mm Stitching Height
Brand: Wepack (Guangzhou) Machinery Equipment Co., Ltd
SKU: X7-1800
Availability: InStock

Product Details

Place of Origin: GUANGDONG, CHINA

Brand Name: WEPACK

Certification: CE,SGS

Model Number: X7-1800

Payment & Shipping Terms

Minimum Order Quantity: 1 SET

Price: Negociated

Packaging Details: Wooden frame,wrapping film,bandage,carton, protective packaging in line with export cabinets

Delivery Time: 1-15 days

Payment Terms: L/C, T/T

Supply Ability: 50 sets per month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                Stainless Steel Carton Box Stitching Machine, Two Servo Carton Stitching Machine, 150mm Height Corrugated Stitching Machine


Application:	Corrugated Cardboard	Material:	Stainless Steel
Max. Speed:	400 Stitches/min	Weight:	500kg
Power:	1.5KW	Stitching Height:	10-150mm
Dimension:	2100x620x1950mm	Stitching Type:	Single Or Double Stitching

Application:	Corrugated Cardboard
Material:	Stainless Steel
Max. Speed:	400 Stitches/min
Weight:	500kg
Power:	1.5KW
Stitching Height:	10-150mm
Dimension:	2100x620x1950mm
Stitching Type:	Single Or Double Stitching

Stainless Steel Carton Box Stitching Machine Two Servo 150mm Stitching Height

Carton Stitcher Double Servo Auto Push Manual Stitcher

Machine Features

1.Bridge adopts high quality profile and plate and the skeleton is made of H steel.
2.The carton sitching machine is used to make corrugated box with the stitching wire.
3.Feed the cardboard manually, feet switch control the working

4. The machine adopts advanced electronic clutch and electronic brake devices to replace the traditional mechanical clutch so as to realize controllable operation.
It has the characters of high efficiency, low energy

consumption, new structure,electronic assembly, low failure rate, a larger range of winding .Easy adjust and operate.


Adopts double servo drive system, accurate, precision mechanical transmission parts, can effectively reduce the mechanical failure, nailing speed, update technology, better quality.

Electric PANASONIC PLC control system, Japan OMRON, switch power supply SAMKOON touch-screen, Taiwan FOTEK proximity switch.

AIR-TEC Cylinder, solenoid valve, Taiwan foot switch.

Nail head all adopt imported from Japan for the whole mold production, computer gong precision machining.

The blade, the punch From Taiwan TAOYUAN precision machining, the blade can be replaced.(wear resistance, corrosion resistance).

Japan NSK bearings



PARAMETER:XU-X7-1800

Model	WM-X7-1800
Stapling speed	200-350 nails/min
Stitching wire	18# (1.8*0.8mm)
Max Cardboard thickness	16mm(before press)
Wire Size	2.2*0.7mm
Length of strength arm	1800mm
Max Sheet size(A+B)	1600mm
Motor power	2kw
shape size	22807002100MM
Machine weight	530KG
