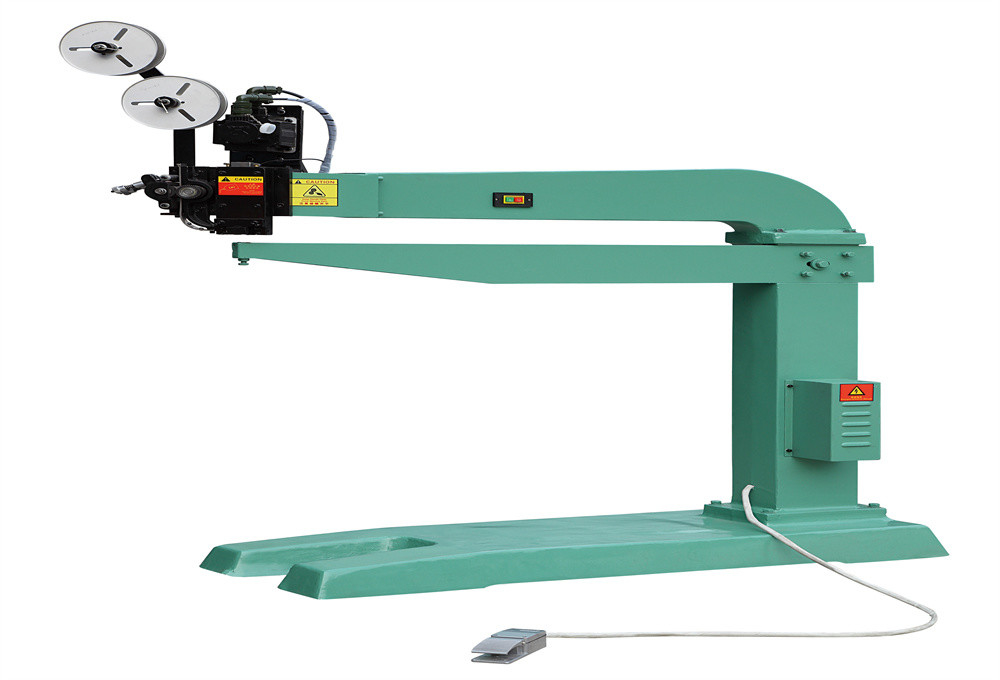

6mm Thickness Box Stitching Machine Manual Electronic Cardboard Stitching Machine

Name: 6mm Thickness Box Stitching Machine Manual Electronic Cardboard Stitching Machine
Brand: Wepack (Guangzhou) Machinery Equipment Co., Ltd
SKU: WM-X4-1500
Availability: InStock

Product Details

Place of Origin: GUANGDONG, CHINA

Brand Name: WEPACK

Certification: CE,SGS

Model Number: WM-X4-1500

Payment & Shipping Terms

Minimum Order Quantity: 1 SET

Price: Negociated

Packaging Details: wrapping film,protective packaging in line with export cabinets

Delivery Time: 1-15 days

Payment Terms: L/C, T/T

Supply Ability: 50 sets per month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                6mm Thickness Box Stitching Machine Manual, Electronic Corrugated Stitching Machine, 6mm Thickness Carton Box Stitching Machine


Stitching Thickness:	2-6mm	Model:	SS-100
Weight:	450kg	Thread Tension:	Electronic
Power Consumption:	1.5KW	Needle Distance:	250-400nails/min
Color:	White,Grenn,Black

Stitching Thickness:	2-6mm
Model:	SS-100
Weight:	450kg
Thread Tension:	Electronic
Power Consumption:	1.5KW
Needle Distance:	250-400nails/min
Color:	White,Grenn,Black

6mm Thickness Box Stitching Machine Manual Electronic Cardboard Stitching Machine

Box Stitcher Single Servo High-Speed Stitcher

MAIN FEATURES

1.Bridge adopts high quality profile and plate and the skeleton is made of H steel.
2.The carton stitching machine is used to make corrugated box with the stitching wire.
3.Feed the cardboard manually, feet switch control the working
4. The machine adopts advanced electronic clutch and electronic brake devices to replace the traditional mechanical clutch so as to realize controllable operation.
5. It has the characters of high efficiency, low energyconsumption, new structure,electronic assembly, low failure rate, a larger range of winding .Easy adjust and operate.

CONFIGURATION

1.In the whole machine adopts servo drive , accurate, precision mechanical transmission parts, can effectively reduce the mechanical failure, nailing speed, update technology, good quality.
2.Cylinder, solenoid valve, using Taiwan's brand, "Taiwan foot switch.
3.Nail head all adopt imported from Japan for the whole mold production.
4. The blade, the punch From Taiwan TAOYUAN precision machining, the blade can be replaced.(wear resistance, corrosion resistance).
5.NSK bearings from Japan.
The whole machine adopts servo drive ,accurate precision and mechanical transmission parts, can effectively reduce the mechanical failure, nailing speed,update technology, Better quality.

PARAMETER:

Model	WM-X4-1800
Stapling speed	200-320 nails/min
Stitching wire	18# (1.8*0.8mm)
Max Cardboard thickness	16mm(before press)
Wire size	2.2*0.7mm
Length of strength arm	1800mm
Max Sheet size(A+B)	1800mm
Motor power	2.1kw
shape size	22807002100MM
Machine weight	485KG
