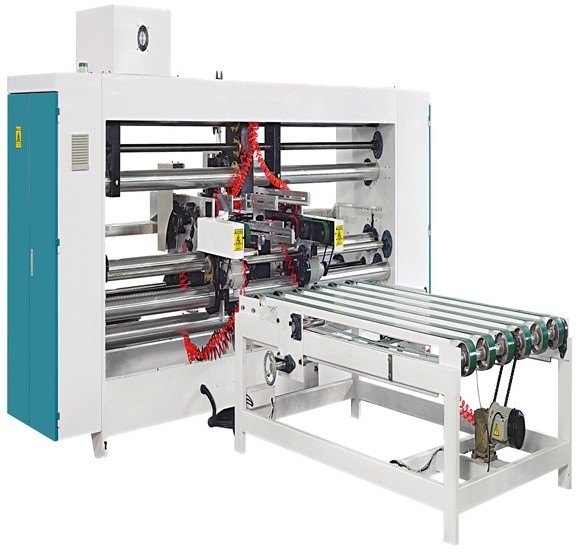

Double Piece Joint Semi Auto Stitcher Double Servo For Carton Stitching

Name: Double Piece Joint Semi Auto Stitcher Double Servo For Carton Stitching
Brand: Wepack (Guangzhou) Machinery Equipment Co., Ltd
SKU: WM-X3-2500/2800/3200
Availability: InStock

Product Details

Place of Origin: GUANGDONG, CHINA

Brand Name: WEPACK

Certification: CE,SGS

Model Number: WM-X3-2500/2800/3200

Payment & Shipping Terms

Minimum Order Quantity: 1 SET

Price: Negociated

Packaging Details: Wrapping film protective packaging in line with export cabinets

Delivery Time: 5-15 days

Payment Terms: L/C, T/T

Supply Ability: 25 sets per month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                Double Piece Joint  Semi Auto Stitcher, Double Screw Semi Auto Stitcher, Double Screw Semi Automatic Stitcher


Stitching Typee:	Single Or Double Screw	Speed:	500nails/min
Control System:	PLC	Stitching Distance:	30-120mm
Type:	Semi-auto Double-piece Joint Stitcher	Power:	11kw

Stitching Typee:	Single Or Double Screw
Speed:	500nails/min
Control System:	PLC
Stitching Distance:	30-120mm
Type:	Semi-auto Double-piece Joint Stitcher
Power:	11kw

Double Piece Joint Semi Auto Stitcher Double Servo For Carton Stitching

WHOLE MACHINE FEATURES

1.Servo system Speeding semi-auto stitching machine would be able to stitch 450 nail/minute, suitable for changing work size more easily.

2.No training experience worker is also easy to operate.

3.Allowing single and double sheet to stitch flexibility.

4.The intelligent counter Can be finished automatically to count the final goods.

5.Infrared optical device adjust lifting platform automatically to control the feed height precisely .

6.Most of bearing in the important department of the machine is made in Germany FAG ,Japan NSK etc.

MAIN SPARE PARTS:

Japanese YASKAWA ELECTRIC servo motor.

Japanese OMRON PLC programmed.

Japanese NSK Bearing. TR bearing with set.

Electric switch & contactor: Taiwan brand. Almost Electric: Germany SIEMENS

Stitching head use Japanese molding design. CNC precision treated.

Blade and bottom mould used Germany Tungsten steel. And Japanese SKD11 alloy steel puncher pin that anti-friction and rot.

All transmission gears are hardened and ground, HRC 58-60°.

Taiwan pneumatic cylinder adopted.

America BANNER Taiwan FOTEX Taiwan WEILUN Touch Screen.

MODEL	WM-X3-2500	WM-X3-2800	WM-X3-3200
Max.Sheet Width(A+B)X2	4800mm	5400mm	6000mm
Min.Sheet Width(A+B)X2	1200mm	1060mm	1060mm
Max.Sheet Length(i.e.:A)	2250mm	2550mm	2850mm
Min.Sheet Length(i.e.:A)	350mm	350mm	350mm
Max.Sheet Width(i.e.:B)	1150mm	1350mm	1500mm
Min.Sheet Width(i.e.:B)	180mm	180mm	280mm
Max.Sheet length(i.e.:C+D+C)	400mm	400mm	400mm
Stitching Pitch	30-140mm	30-140mm	30-140mm
No.Of Stitch	1～99 nail	1～99 nail	1～99 nail
Stitching Speed	450nails/minute	450nails/minute	450nails/minute
Power Required	16HP	12HP	12HP
Stitching Type ( / / / // // // // / / / // )	Single Double Max	Single Double Max	Single Double Max
Machine Total Width(mm)	3900MM	4200mm	4500mm
Machine Weight(kg)	3800KG	4000kg	4200kg
